Box Joint Joinery Tools | Jigs, Bits & Sets

Box Joint Joinery Jigs & Router Bits for Precise Finger Joints

Box joints—also called finger joints—are interlocking rectangular pins and sockets that create a large glue surface and a visually striking corner joint. They are popular for drawer boxes, keepsake boxes, and shop-built tool caddies. Cutting consistent box joints requires either a dedicated jig, a properly configured dado stack, or a purpose-made router bit. Infinity Tools carries the full range: jigs, bits, setup blocks, and complete packages to get you cutting accurate finger joints right away.

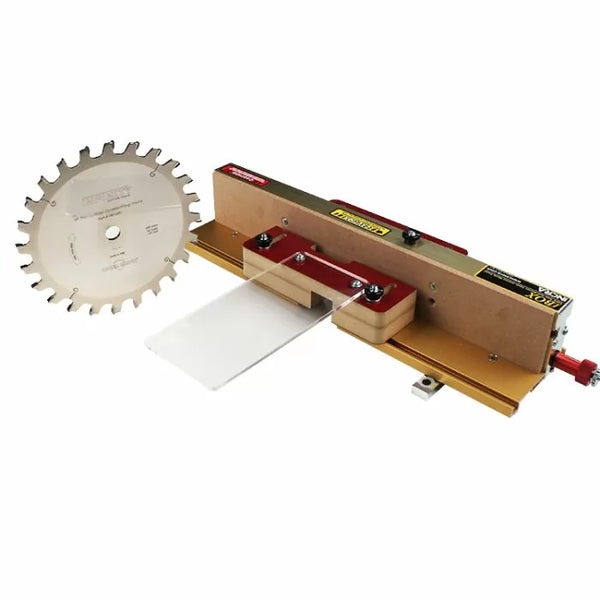

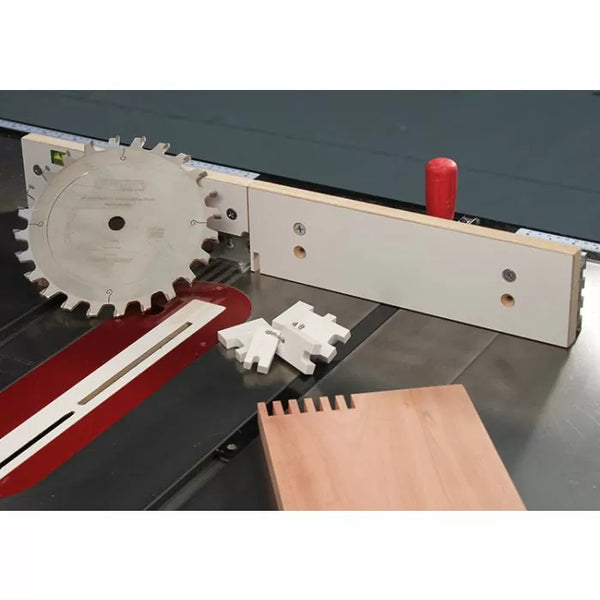

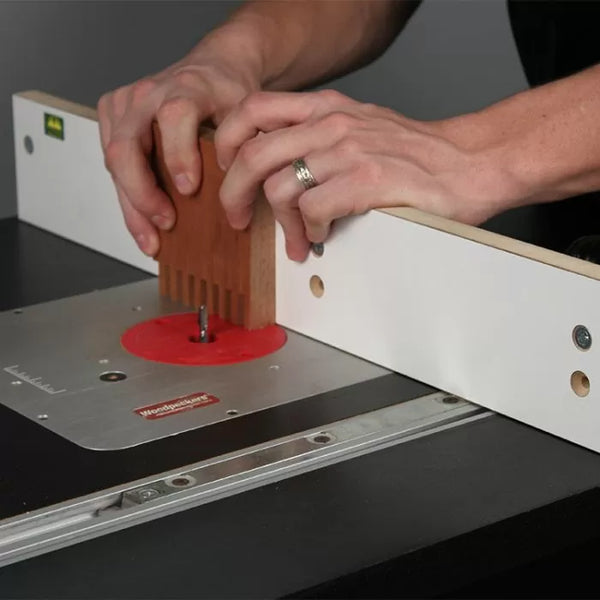

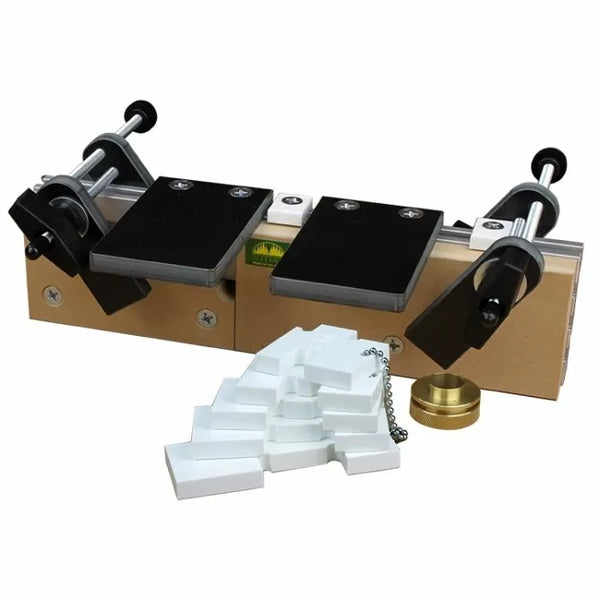

The box joint jig for router table and table saw is a versatile centerpiece for any finger-joint operation. It indexes each successive cut using a registration key that matches the slot width, producing evenly spaced, self-aligning pins and sockets. For larger finger joints, the portable box joint jig for large finger box joints handles thicker stock and oversized fingers with ease.

Setup Accessories & Complete Packages

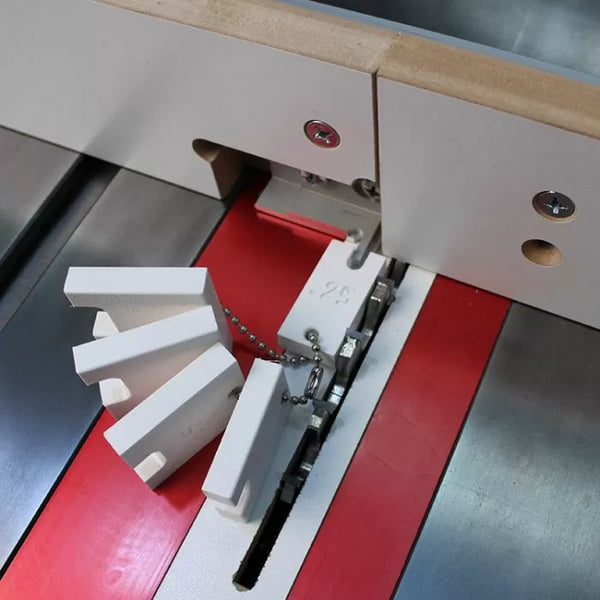

Precise setup is essential for gap-free finger joints. The 5-piece setup block kit takes the guesswork out of indexing pin alignment, while the box joint router bit is ground to precise tolerances for clean, flat-bottomed slots. For a turnkey solution, the joint jig package with flat top blade and setup block kit includes everything you need in one bundle.

Jigs for router table and table saw use
Specialty router bits with precise tolerances
Setup block kits for repeatable alignment
Portable jig options for large finger joints

For related joinery techniques, explore our biscuit joinery tools and our broader cabinetry & joinery collection.

Frequently Asked Questions

What is the difference between a box joint and a dovetail joint?

A box joint has square, rectangular pins and sockets, while a dovetail joint has angled, trapezoidal pins that interlock mechanically without relying solely on glue. Dovetails are stronger in tension because the angled shape resists being pulled apart, but box joints are faster to cut with a jig and still provide excellent glue surface area for corner assemblies.

Can I cut box joints on a table saw without a router table?

Yes. A table saw with a dado stack or a single flat-top blade, combined with a sliding box joint jig that rides in the miter slot, can produce accurate finger joints. Router tables are also popular because they allow use of a dedicated box joint router bit for very clean slot walls.

How do I choose the right finger width for my project?

Common finger widths are 1/4 inch, 3/8 inch, and 1/2 inch. Narrower fingers look more refined and are suited to thin stock under 1/2 inch. Wider fingers work better in thicker stock and are faster to cut. The finger width and the stock thickness should generally be in proportion for a balanced visual result.

Why are my box joint fingers not fitting tightly?

Poor fit is almost always a setup issue. The indexing key must exactly match the slot width; even a few thousandths of an inch of difference will compound across multiple fingers and produce a loose or binding joint. Use a setup block kit to dial in the indexing pin position precisely before cutting your actual workpiece.

Do box joint jigs work with both the router table and the table saw?

Many jigs in our collection are designed to work with both machines. The jig slides in a standard miter slot on either a table saw or a router table, and the cutting tool—dado blade or router bit—is set to match the jig's indexing spacing. Verify that your miter slot dimensions are compatible with the jig's bar.

What wood species work best for box joint projects?

Close-grained hardwoods like maple, cherry, and walnut produce crisp, clean fingers with sharp arrises. Softer woods like pine cut easily but can compress or chip on thin fingers. MDF and plywood can be used for utility boxes but show exposed core at the joint faces, which some woodworkers address with veneer tape.

How do I apply glue efficiently to a box joint?

Use a small brush or glue roller to coat all mating surfaces evenly, working quickly to stay within the adhesive's open time. Apply glue to both the pins and the sockets for maximum coverage. Dry-assemble and check the fit before committing to a glued assembly to avoid difficult corrections later.

Are there jig options for making extra-large finger joints?

Yes. The portable box joint jig for large finger box joints is specifically designed to handle wider fingers and thicker stock, making it suitable for shop boxes, blanket chests, and other large-scale projects.

Where can I find tutorials on cutting box joints?

The Infinity Tools blog features technique articles and guides on joinery methods including box joints, helping you understand setup, troubleshooting, and best practices before you make your first cut.

What other joinery tools complement box joint jigs?

Clamping tools, marking gauges, and precision setup bars all support accurate box joint work. Explore our full cabinetry & joinery collection for complementary tools including doweling jigs, dado sets, and assembly hardware.
